Figures 3 & 4 Enlarged

FIGS. 3 & 4

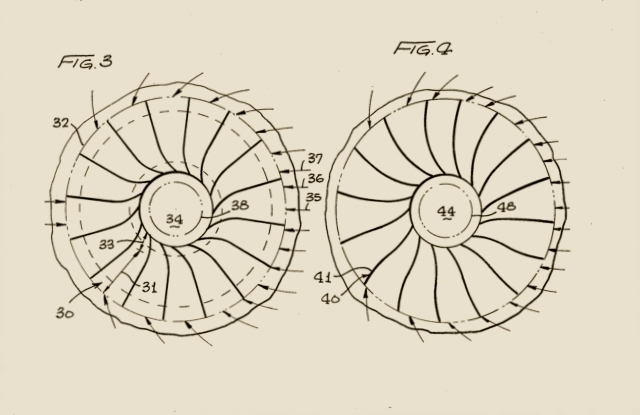

are plan views. FIG. 3 is a plan view of symmetrical inlet guide vanes taken along line 3—3 of FIG. 1. FIG. 4 is a plan view of individually shaped inlet guide vanes taken along line 3—3 of FIG. 1.

home back

........Fig. 1 ........Fig. 2 Figs. 3 & 4 ........Fig. 5 ........Fig. 6 Figs. 7 & 8 ........Fig. 9 ......Fig. 10 ......Fig. 11 ......Fig. 12 ......Fig. 13 ......Fig. 14

FIGS. 3 & 4

DAM-ATOLL

Ocean Wave Energy Extraction Device

Enlarged Drawings From The Patent: Figures 3 & 4
